M2M
Product Details:
The Aeronix M2M-1000-V edge device is a Verizon certified CDMA/GPS sensor management and control unit with flexible and secure cloud-based monitoring and configuration capabilities. In combination with the Aeronix Machine2Cloud Management Server an ecosystem is enabled with the ability to quickly and seamlessly manage an array of geographically remote M2M based sensors for your commercial, industrial, agricultural or military applications.

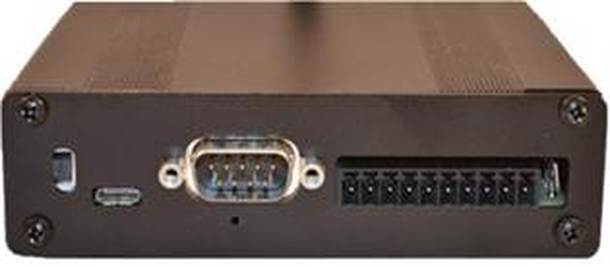

ACT machine control applications can be implemented used the ACT device shown above, re-packaged into environmentally sealed enclosures, or implemented as embedded electronics into your end system. Aeronix is here to help.
|
Device |
110mm x 55mm x 30mm rugged, aluminum enclosure 175mm x 90mm x 40mm IP67 rated plastic enclosure Soft On/Off button, Status LED’s, USB charging port, Sensor interface |
|
Cellular Network |
Verizon CDMA network |
|
GPS |
L1 band, Assisted-GPS, Anti-jamming, Active antenna |
|
Antennas |
CDMA: Internal cabled PCB antenna, external low profile whip options GPS: Internal or external cabled high gain active patch |
|
Accelerometer |
3-Axis, ±2g precision |
|
Temperature Sensor |
Internal -25°C to 65°C |
|
Battery / Power |
1600mA Li-Po long life, rechargeable battery with protection circuitry 5V 1A Micro USB port for charging (typical 1-2 hour charge time) Battery monitoring and status |
|
Sensor Interface |
RS232/422/485, analog inputs, analog output, digital output |
|
Environment |
Operating -20°C to +60°C Storage -40°C to +85°C IP67 rated for plastic enclosure option (including ports) |
|
Supported Sensors |
AC Current sensing: 0-20A, ±2%, CR Magnetics current probe Temperature: 0-50°C , ±2% (additional temp. ranges available) Passive IR: 12m range, Panasonic PIR sensor Airflow: 0-3m/s, MEMS based Omron sensor |
|
Certifications |
FCC, IC compliant Verizon (OD Device) |
|
Application Software |

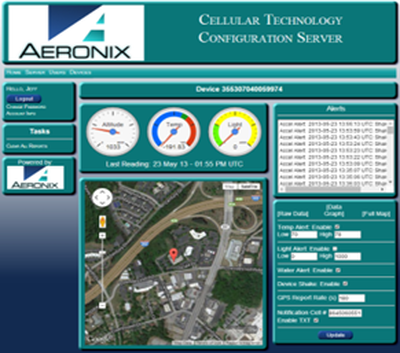

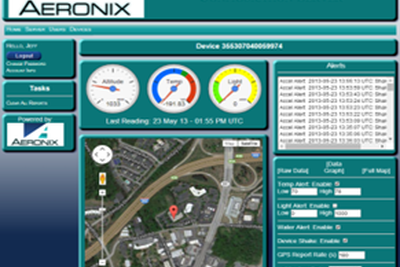

Web based dashboard for configuration and monitoring Set threshholds, check-in times, alerts Notification via SMS texts or email alerts Dashboard customization service available |
The Aeronix M2M-1000-G edge device is a GSM ready sensor management and control unit with flexible and secure cloud-based monitoring and configuration capabilities. In combination with the Aeronix Machine2Cloud Management Server an ecosystem is enabled with the ability to quickly and seamlessly manage an array of geographically remote M2M based sensors for your commercial, industrial, agricultural or military applications.
ACT machine control applications can be implemented used the ACT device shown above, re-packaged into environmentally sealed enclosures, or implemented as embedded electronics into your end system. Aeronix is here to help.
|
Device |
110mm x 55mm x 30mm rugged, aluminum enclosure 175mm x 90mm x 40mm IP67 rated plastic enclosure Soft On/Off button, Status LED’s, USB charging port, Sensor interface |
|
Cellular Network |
GSM networks including AT&T, Sprint, Orange,... |
|
GPS |
L1 band, Assisted-GPS, Anti-jamming, Active antenna |
|
Antennas |
GSM: Internal cabled PCB antenna, external low profile whip options GPS: Internal or external cabled high gain active patch |
|
Accelerometer |
3-Axis, ±2g precision |
|
Temperature Sensor |
Internal -25°C to 65°C |
|
Battery / Power |
1600mA Li-Po long life, rechargeable battery with protection circuitry 5V 1A Micro USB port for charging (typical 1-2 hour charge time) Battery monitoring and status |
|
Sensor Interface |
RS232/422/485, analog inputs, analog output, digital output |
|
Environment |
Operating -20°C to +60°C Storage -40°C to +85°C IP67 rated for plastic enclosure option (including ports) |
|
Supported Sensors |
AC Current sensing: 0-20A, ±2%, CR Magnetics current probe Temperature: 0-50°C , ±2% (additional temp. ranges available) Passive IR: 12m range, Panasonic PIR sensor Airflow: 0-3m/s, MEMS based Omron sensor |
|
Certifications |
FCC, IC compliant Call for the list of currently approved networkds |
|
Application Software |
Web based dashboard for configuration and monitoring Set threshholds, check-in times, alerts Notification via SMS texts or email alerts Dashboard customization service available |
