EDL Nano

Product Details:

EDL Nano
Additional Images:

Download PDF

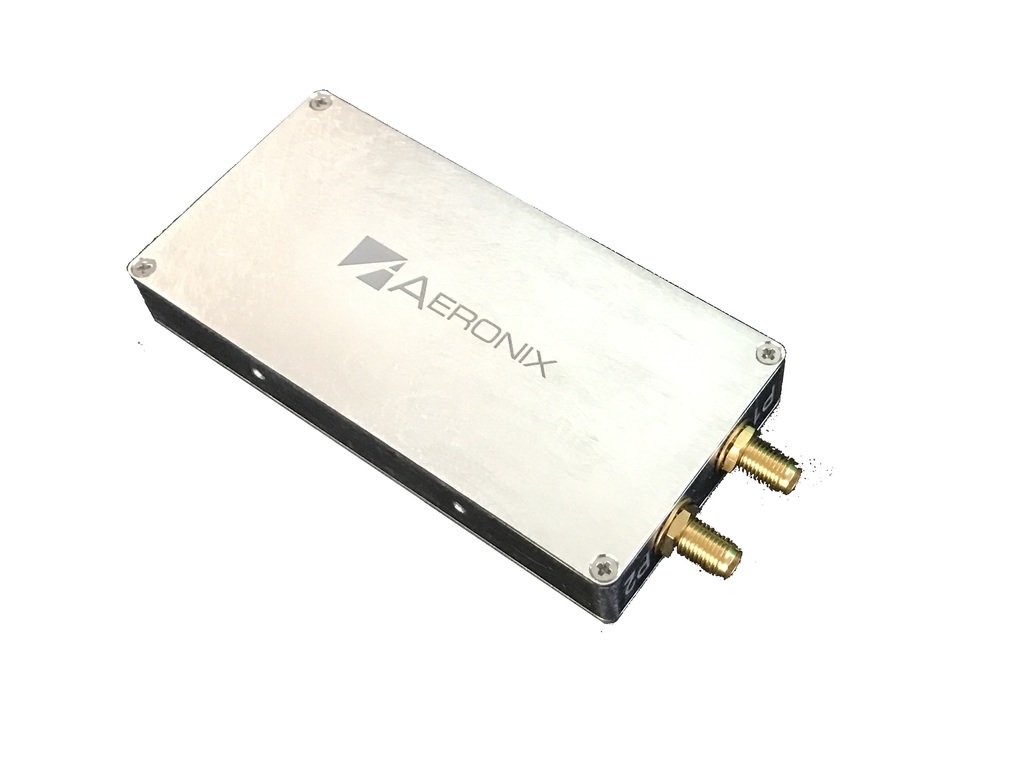

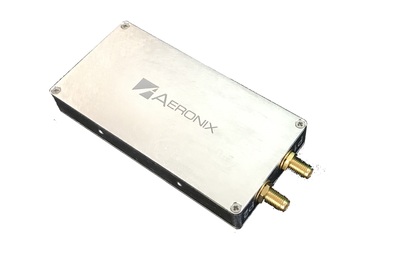

The EDL-Nano Data Link is a conduction cooled small software defined radio (SDR) designed to provide on-the-move (OTM) seamless connectivity for IP data, video, and voice. Low latency, seamless Layer 2 Ethernet connectivity facilitates plug-and-play, creation of networks of computer tablets, cameras, sensors. The EDL Nano is ideal for UAV, UGV, USV, or an unmanned platform solution as well as manned solution where SWaP is critical.  The capability for direct USB device support is provided via industry standard USB connections and software driver support. Aeronix end-to-end SDR technology enables unprecedented Cyber security and network encryption capabilities not available in non-SDR radio solutions. Models are available for RF spectrum in the L and S bands. Custom RF bands between 100 MHz -6 GHz are available for customer specific applications. Point-to-Point, Point-to-Multipoint, and peer-to-peer MESH network topologies are supported.


  • 2”W x 4L” x 0.5H” standard version.
  • 4 ounces
  • Freescale MX6 Quad-core processor
  • H.264 Video Compression (optional)
  • CSI-2 Digital Video Input
  • Software Defined Radio
  • 1 to 3.5 Watts RF TX Output
  • Single Transmit and Diversity Receive:  1Tx, 2Rx
  • Conduction Cooled /Industrial Temperature
  • Modular RF 1.8 — 2.5 GHz, C-Band 5 GHz
  • I/O: Ethernet x 2, USB , Serial x 2


  • Point-to-Multipoint and MESH Network topologies supported
  • AES Encryption with 256 bit key standard (< 1 uSec latency) and 128 bit key (International).
  • Doppler correction for ground-to-air and air-to-air operation.
  • ACM at BPSK, QPSK, QAM16, QAM64, PSK8, and PSK16
  • PMP and Mesh Waveforms
  • Long Range Air/Ground Mode: GMSK
  • QoS built into waveform.
  • SCA Compatible architecture.
  • Waveform supports distances to 250 miles.
