Aeronix Physical Interface Layer (APIL)

Product Details:

Aeronix Physical Interface Layer (APIL)
Additional Images:

Download PDF

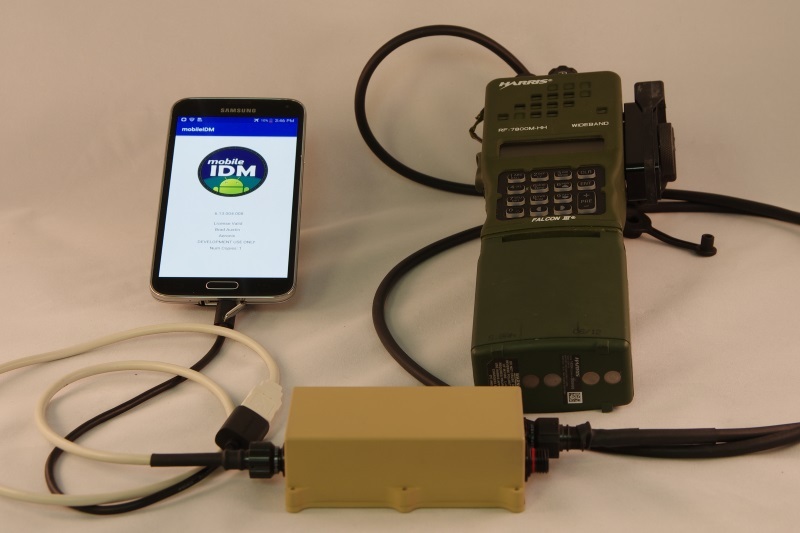

The APIL™ is Aeronix’ solution for providing a USB to radio data port solution for legacy combat net radios.  It supports a wide variety of combat net radios that require a digital sync/serial interface or direct analog ASK/FSK modulation interface.  Along with the Aeronix line of software modems, it allows VMF and legacy CNR TDL solutions to work on virtually any data-capable HF/UHF/VHF combat net radio in the world.

Key Features

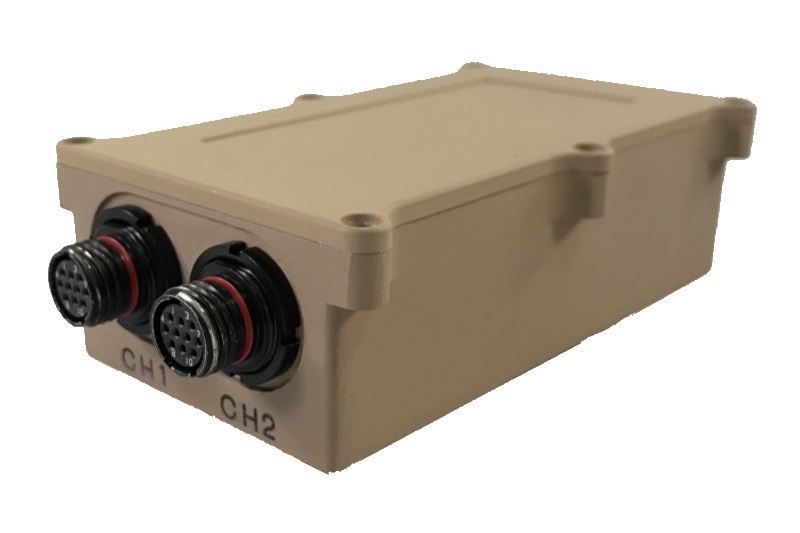

  • Channels: 2

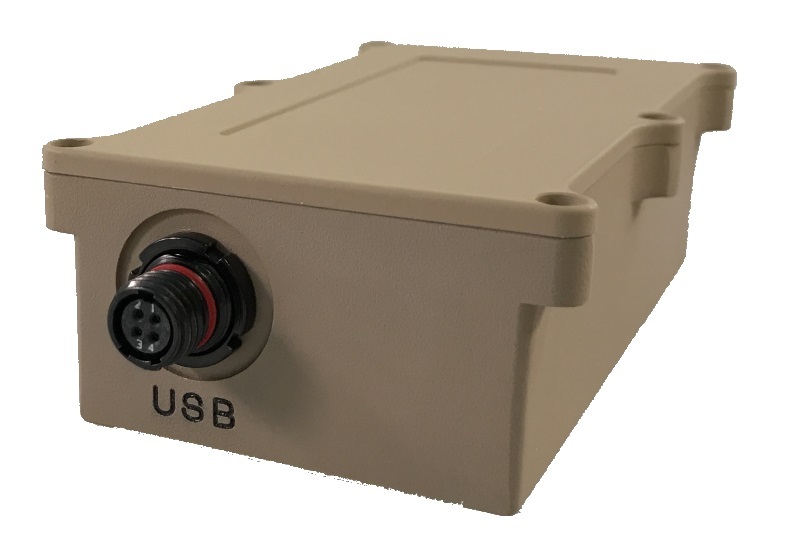

  • Modular connectors at both USB-side and radio-side
  • Power: USB
  • Radio Data Interfaces Supported: Sync/Serial, Analog (ASK / FSK)
  • FSK Tone Pairs: 1300/2100, 1200/2400, 1300/1700
  • TDL Protocols: MIL-STD-188-220B/C/D CN1, AFAPD, TACFIRE, MTS
  • WinIDM/LinIDM/mobileIDM Compatible Host: Yes
  • DACAS DVMT Compatible: Yes
  • CESMO Compatible: Yes
  • Attractive SWaP
    • 5 oz.
    • < 1.0 Watt
    • 1.4”H x 2.35”W x 4.7”D
