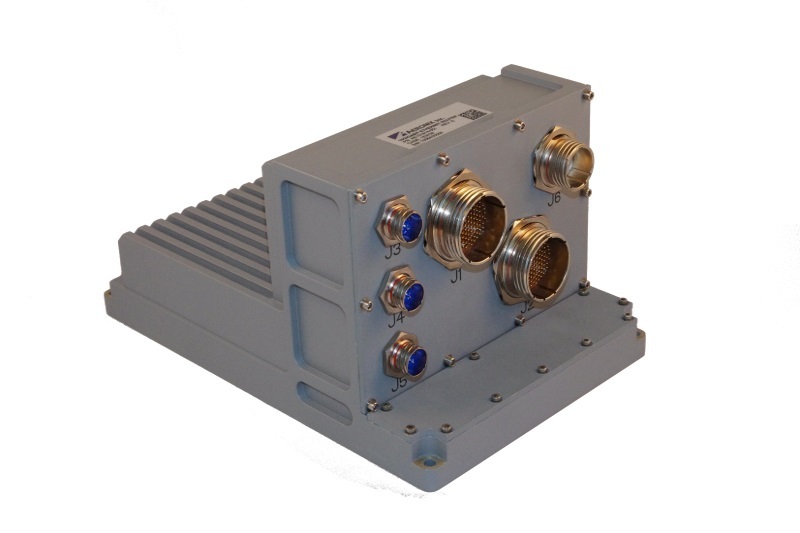

AB10GR: Ruggedized 10 Gigabit Ethernet Router

The Aeronix Gigabit Ethernet Router (GER) AB10GR provides twenty 10/100/1000 and three 10G Ethernet ports for use in commercial, industrial, and military applications that require ultra-high data transfer rates in a self-contained ruggedized package. The rugged design requires no forced air or conductive cooling, and has autonomous heating elements for low temperatures, allowing operation in a broad range of harsh environments including operation in uninhabited aircraft bays.

All of the AB10GR’s 23 ports can be configured with all with Layer 2 and Layer 3 capabilities. Functions like Spanning Tree Protocol (STP) prevent looping and provide more efficient communication using cheapest cost routes and route recovery in case of link failure. VLANs and QOS allow targeted data to flow on specific routes or with higher priority. Other functions like IPSEC, RIP and OSPF can be utilized to add security to packets, and dynamic routing for more efficient communication using least cost routes. Firewalls can be set up to block traffic of specific types on specific ports.

Each of the twenty IEEE 802.3ab ports can individually auto-detect data rates of 10, 100, or 1000 BASE-T, or can be managed externally. The three 10GBASE-T 802.3an can be connected on full-duplex point-to-point links for blazing fast throughput. Incorporating the Aeronix AB10GR into your design allows the use of high-speed Ethernet connectivity between any or all of your devices while virtually eliminating data-rate bottlenecks.

Key Features:

• Three 10GBASE-T ports AND 20 Tri-Speed 10/100/1000 ports
• Port Mirroring
• VLAN per 802.1Q
• Quality of Service (QOS) Diff Serv Traffic Capability - 802.1p
• Spanning Tree/Rapid Spanning Tree
• Multicast IGMP Snooping
• Link Aggregation
• Stateful Firewall - IPv4
• Intrusion Detection Prevention- IPv4
• Network Address Translation - IPv4
• IPSEC - IPv4
• OSPF v2/v3 dynamic routing
• RIP v1/v2/ng dynamic routing
• IPv6 Routing
• Command Line Interface via both in-band and serial port.
• Autonomous Heating Element for extreme low temperatures
• Power Consumption <45 watts="" --45--="">
• Less than 10 lbs.
